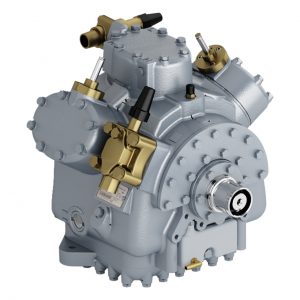

05G Open-Drive Reciprocating Compressor

12 to 14 Nominal HP
40 Nominal Cfm

The 05G compressor provides superior performance and exceptional reliability.

Engineered to withstand punishing conditions, the 05G features heavy duty construction, and its exclusive 2/4-cylinder design ensures exceptionally smooth, balanced operation.

The 05G is suitable for air conditioning or refrigeration applications, with belt drive or direct drive.

• Superior efficiency significantly reduces horsepower drain, reduces maintenance, extends life, saves fuel
• Exclusive balanced cylinder design minimises torque pulsations for smoother
  operation, less wear
• Extended maintenance, lower operating speeds, lower vibrations, and less wear mean less maintenance and lower operating costs
• Larger capacity self-priming, reversible oil pump provides dependable oil flow
  under cold or flooded startup conditions and ample pressure at low rpm
• Higher capacity, efficiency at speeds at least 30% lower
• Housing-mounted clutch and larger clutch bearing provide longer life
• Low oil-circulation rate of less than 1% for greater operating efficiency
• Exclusive compressor unloading saves fuel, increases efficiency, eliminates coil freezing, for uniform temperature distribution
• Standard commercial marine parts warranty, OEM-backed

Application Guide Brochure Parts List

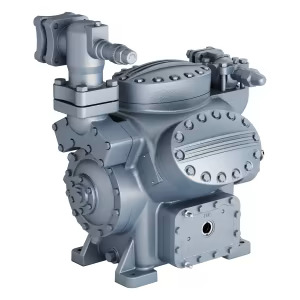

5F Open-Drive Reciprocating Compressor

5 to 25 Nominal HP
19.8 to 59.6 Nominal Cfm

• Automatic unloaded starting, expensive high-torque motors are unnecessary, reducing initial expense.
• High-efficiency motor can further increase efficiency of 5F and 5H compressors.
• Crankcase casting, cylinder head, and valve plate designs allow for a smooth, unrestricted refrigerant flow.
• Refined, two-piece shaft seal assembly virtually eliminates seal leakage for maximum reliability over a wide temperature range.
• Efficient crankcase heater design prevents accumulation of liquid refrigerant in the crankcase during shutdown, dilution of the compressor oil supply.
• As suction pressure changes, capacity control automatically reduces compressor capacity to as low as 35% of full-design load, reducing horsepower requirements as demand changes. Part-load operation increases energy efficiency, reducing utility bills.
• Large-capacity, manually reversible oil pump, automatic pressure regulator, and oil-filtering system provide positive pressure lubrication, extending life.
• Suction gases flow around cylinder sleeve to keep the cylinder cool, reducing cylinder wear.
• Greater operating efficiencies by running an oversized compressor at a reduced RPM.

Application Guide Brochure Parts List

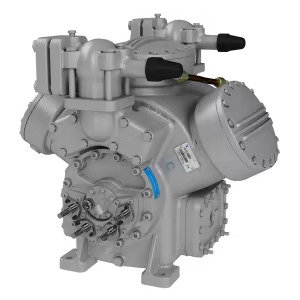

5H Open-Drive Reciprocating Compressor

25 to 150 Nominal HP
92.4 to 346 Nominal Cfm

• Automatic unloaded starting, expensive high-torque motors are unnecessary, reducing initial expense.
• High-efficiency motor can further increase efficiency of 5F and 5H compressors.
• Crankcase casting, cylinder head, and valve plate designs allow for a smooth, unrestricted refrigerant flow.
• Refined, two-piece shaft seal assembly virtually eliminates seal leakage for maximum reliability over a wide temperature range.
• Efficient crankcase heater design prevents accumulation of liquid refrigerant in the crankcase during shutdown, dilution of the compressor oil supply.
• As suction pressure changes, capacity control automatically reduces compressor capacity to as low as 35% of full-design load, reducing horsepower requirements as demand changes. Part-load operation increases energy efficiency, reducing utility bills.
• Large-capacity, manually reversible oil pump, automatic pressure regulator, and oil-filtering system provide positive pressure lubrication, extending life.
• Suction gases flow around cylinder sleeve to keep the cylinder cool, reducing cylinder wear.
• Greater operating efficiencies by running an oversized compressor at a reduced RPM.

Application Guide Brochure Parts List

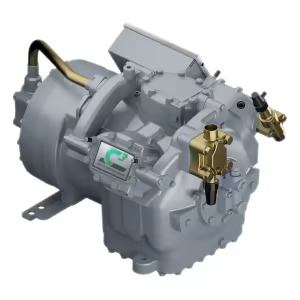

06CC Compound Cooling Compressor

5 to 30 Nominal HP
16 to 99 Nominal Cfm

• Carlyle’s innovative design makes it literally two compressors in one, with both high and low stages built in.
• Narrow-seat valve design makes it the most efficient low-temp compressor on the market in both HCFC and HFC applications in the 6 1/2 HP to 30 HP ranges.
• Optimizes System Operation.
• Compatible with HFC refrigerants and POE oil in single, multiplexed and parallel system design configurations.
• Utilizing liquid subcooling minimizes liquid temperature fluctuation to TXVs on systems incorporating floating condensing temperatures.

Application Guide Brochure Parts List

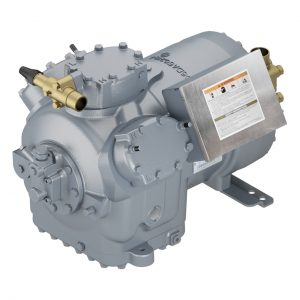

06D Semi-Hermetic Reciprocating Compressor

13 to 15 Nominal HP
8 to 41 Nominal Cfm

Carlyle’s 06D semi-hermetic compressors are ideally suited for commercial refrigeration, air conditioning, process cooling, and environmental chambers. They provide superior performance and exceptional reliability.

• High-flow, automatically reversible oil pump provides positive-displacement oil lubrication
• Crankcase venting system equalizes pressure during startup and assures oil return to sump
• Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts
• Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency
• High-efficiency valves provide increased refrigerant flow and lower pressure drops
• Electronic oil-pressure switch

Application Guide Brochure Parts List

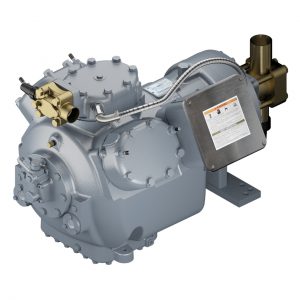

06E Semi-Hermetic Reciprocating Compressor

15 to 40 Nominal HP
50 to 99 Nominal Cfm

Carlyle’s 06E semi-hermetic compressors are ideally suited for commercial refrigeration, air conditioning, process cooling, and environmental chambers. They provide superior performance and exceptional reliability.

• High-flow, automatically reversible oil pump provides positive-displacement oil lubrication
• Crankcase venting system equalizes pressure during startup and assures oil return to sump
• Oversize sump holds extra oil in crankcase to prevent levels dropping below safe lubrication range during flooded starts
• Contoured pistons lower cylinder clearances to increase compressor capacity and efficiency
• High-efficiency valves provide increased refrigerant flow and lower pressure drops
• Electronic oil-pressure switch

Application Guide Brochure Parts List

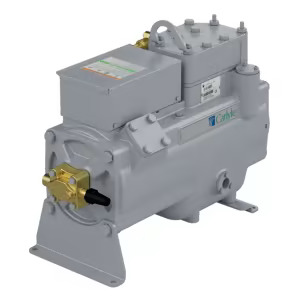

06M Semi-Hermetic Reciprocating Compressor

12 to 20 Nominal HP
15.5 to 24.1 Nominal Cfm

• Designed specifically for R410A.
• Same high standards as the 06D and 06E compressors.
• New factory installed compressor protection module replacing external overloads and calibrated circuit breakers.
• Designed for wide variable speed range.
• Suction cut-off and SMART unloading capacity control capable.
• Serviceability – motor, valve plate, terminal plate, terminal box, oil pump field replaceable.
• Motor protection upgrade option – Sentinel. Diagnostic software provides motor trend data and fault codes.
• Smaller installation footprint – 4” narrower then the 06D compressor.

Application Guide Brochure Installation
