Southern Sales & Services supply Geneglace ice machines and ice systems for the perfect flake and liquid ice to meet all your application needs.
Geneglace Ice Technology is the first manufacturer of ice machines in Europe. Designed according to a simple principle, Geneglace ice generators benefit from over 50 years technical experience and a continuous policy of development, for unbeatable quality. With more than 40 products, Geneglace offers the largest range available on the market.
- Ice Generators
- Ice Packs
- Small Capacity Ice Plants

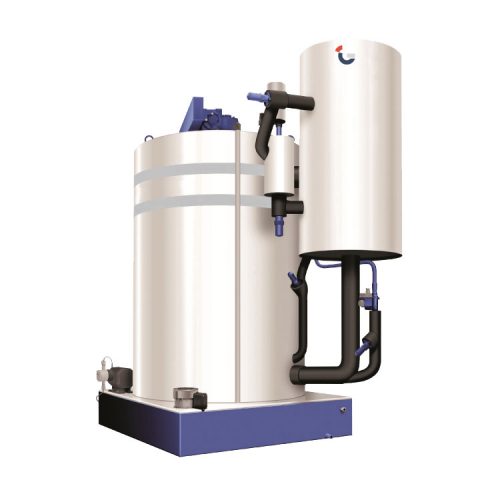

Ice Generators
These ice generators are at the heart of the Geneglace technology. They are to be connected to an existing refrigeration system. The generators capacity varies from 500 kg to 50 tons/day.
As the motion is slow and smooth it requires little maintenance. The design is based on a static cylinder with few moving parts and no rotary seals. The cylinder is fully insulated. This means that all the refrigeration is transferred directly to the water.
Geneglace ice generators for the production of flake ice.
Ideal for:
- Seafood preservation
- Industrial food processing
- Industrial cooling processes
| Range and Model | Production (t/24h) according to operating conditions |
|---|---|
| Commercial range | |
| F15 | 0,5 |
| F30 | 0,65 to 1 |
| F90 H | 1,6 to 3,0 |
| F90 V | 3,0 to 3,5 |
| F90 SBF | 1,6 to 3,5 |
| F90 SW (seawater) | 2 to 3 |
| Semi-industrial* | |
| F200 ABF R404A | 4,5 to 6,5 |
| F200 ABF R717 | 4,5 to 6,5 |
| F200 SBF | 4,5 to 6,5 |
| F250 ABF R404A | 6,5 to 10,0 |
| F250 ABF R717 | 6,5 to 10,0 |
| F250 SBF | 6,5 to 10,0 |
| Industrial range * | |
| F600 ABF | 10 to 14 |
| F600 SBF | 10 to 14 |
| F800 ABF | 15 to 20 |
| F800 SBF | 15 to 20 |
| F900 ABF | 20 to 30 |
| F900 SBF | 20 to 30 |
| F800-2 ABF | 30 to 36 |
| F2000 ABF | 30 to 50 |
| F2000 SBF | 30 to 50 |
| Marine range ** | |
| F30M | 1 |
| F100M | 2,7 |
| F100SW TRI | 2,7 |
* SBF = without flood bottle, ABF = with flood bottle
** M = fresh water, SW = seawater

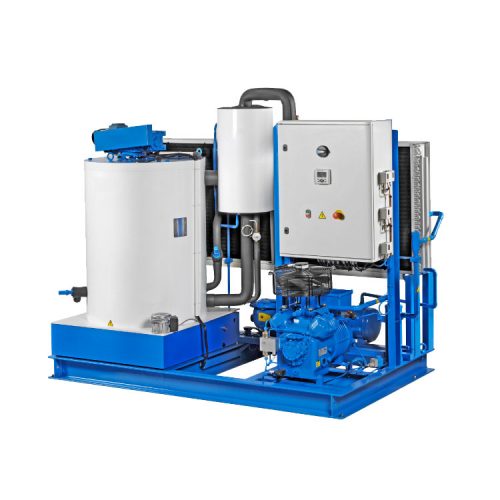

Ice Packs – Generators with condensing units
The Ice Packs are complete assemblies ready for operation after connection to water and electricity. On-site installation is minimal. They offer increased production due to optimisation of the combined ice-generator/condensing unit.
The capacity of the Ice Packs vary between 350 to 26.000 kg of flake-ice per 24 hours.
Geneglace ice packs are reliable and easy to install: water and electric circuit installation only.
Geneglace ice generators with condensing units – ice packs for the production of flake ice. Ideal for:
- Seafood preservation
- Industrial food processing
| Range and Model | Production (kg/24h) Thick ice/Thin ice |
|---|---|
| Land-based, fresh water * | |
| Dual Pack 12 | 450 / 500 |
| Dual Pack 13 | 650 / 700 |
| Dual Pack 14 | 950 / 1 000 |
| Pack 20 | 1,600 / 2,000 |
| Pack 21 | 2,000 / 2,300 |
| Pack 22 | 2,500 / 2,800 |
| Pack 23 | 3,000 / 3,100 |
| Pack 30 | 3,500 / 3,800 |
| Pack 31 | 5,000 / 5,500 |
| Pack 32 | 6,300 / 6,400 |
| Pack 33 | 7,500 / 8,000 |
| Pack 34 | 9 000 / 9 400 |
| Pack 35 | 10,000 / 10,700 |
| Pack 36 | 12,000 / 13,000 |
| Pack 37 | 15,000 / 16,500 |
| Pack 38 | 18,000 / 18,800 |
| Pack 39 | 24,000 / 26,000 |
| Pack 40 | 26 000 / 27 500 |
| Land-based, seawater | |
| Pack F90 SW | 2,700 |
| Pack F90 2SW | 5,000 |
| Pack F90 3SW | 10,000 |
| Gamme marine ** | |
| Pack F30 M | 1,000 |
| Pack F100 M | 2,700 |
| Pack F100 SW | 3,000 |
| Pack F100 2M | 5,500 |
| Pack F100 2SW | 6,000 |
* Nominal performance at 15 °C water/20 °C air
** M = fresh water, SW = seawater

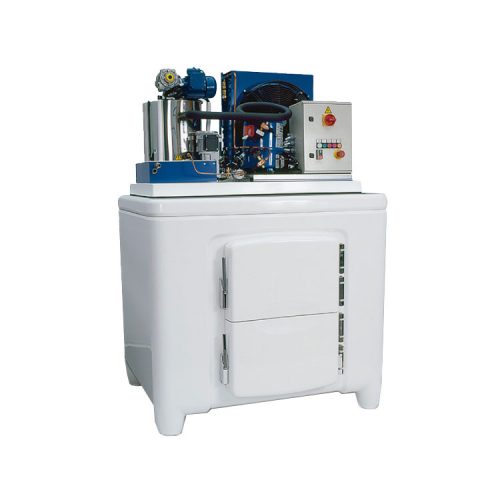

Combis – Small Capacity Ice Plants
These are simple yet effective combinations of production and storage modules with easy access to the ice. Combis include an ice pack, an ice storage bin and an ice level detector that switches-off production in the event of a bin full.
Geneglace small capacity ice plants for the production of flake ice. Ideal for any kind of industrial process.
| Model | Production (kg/24h) Ice Machines |
Storage (kg) Ice bins |
|---|---|---|
| C12 | 500 Dual pack 12 |
350 M0 |
| C13 | 700 Dual pack 13 |
350 M0 |
| C14 | 1,000 Dual pack 14 |
600 M1 |
| C20 | 1,900 Pack 20 |
1,100 M2 |
| C21 | 2,200 Pack 21 |
1,100 M2 |
| C22 | 2,800 Pack 22 |
1,700 M3 |
| C23 | 3,500 Pack 23 |
2,100 M4 |
Storage capacity according to ice density
- On-board Ice Machines
- Insulated Ice Bins
- Orbital Silos

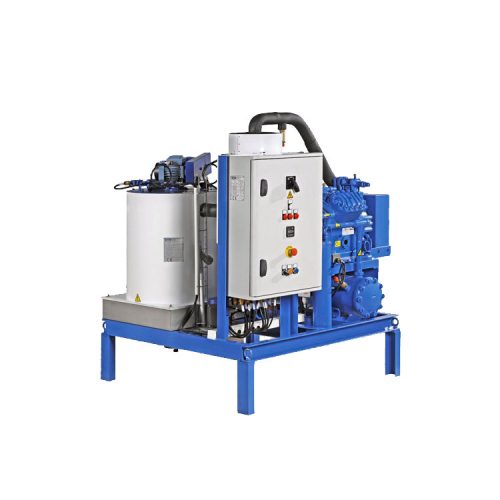

On-Board Ice Machines
| Range and Model | Production (t/24h) according to operating conditions |
|---|---|
| F30 M | 1 |
| F100 M | 2,7 |
| F100 SW | 3 |
| F100 2M | 5,5 |
| F100 2SW | 6 |
The “on-board” ice generators are designed to tolerate the rocking and pitching of the vessels and to withstand the particularly corrosive marine environment.
On-Board Ice Machines for the production of flake ice. Ideal for:
- Seafood preservation
- Fishing industry
Insulated Ice Bins
| Range and Model | For ice machine | Capacity (kg) |
|---|---|---|
| MF100 | – | 100 |
| Enclosed bins | ||
| M0 | Dual Pack 11 | 12 | 350 |
| M1 | Pack 12 | 13 | 14 | 600 |
| M2 | Dual Pack 14 | Pack 20 | 1,100 |
| M3 | Pack 20 | 21 | 22 | 1,700 |
| M4 | Pack 21 à 30 | 2,100 |
| M5 | Pack 23 à 30 | 3,600 |
These quality storage bins hold the ice in good conditions and are all fitted with a handy access function. Their elegant design was created for display in retail outlets. We offer eight orbital silo storage bins with automated ice delivery. The first ice bin is the first ice delivered.
Geneglace insulated ice bins for the storage of flake ice. Ideal for:
- Seafood preservation
- Industrial food processing

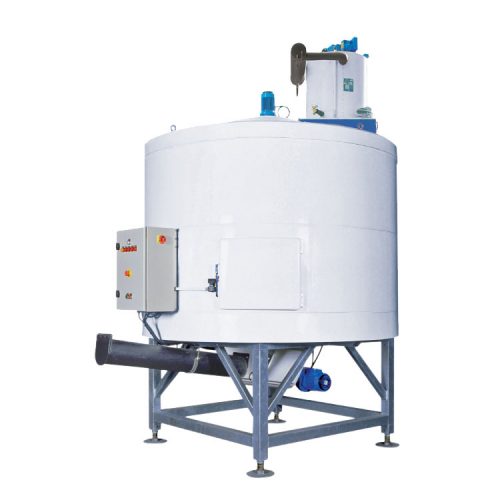

Orbital Silos
| Model | Capacity (t) according to ice density |
|---|---|
| S2 | 2 |
| S3 | 3 |
| S4 | 4 |
| S5 | 5 |
| S8 | 8 |
| S12 | 12 |
| S15 | 15 |
Geneglace orbital silos hygienically store the flake-ice in ideal conditions. The fully automatic ice discharge system ensures delivery on demand, without the hassle of handling. Operates along the FIFO mode (First in-First Out). Preserves the quality of the ice. Made of food-compatible materials. Does not contaminate the ice. The flake-ice supplied is thus of a constant quality, with no build up of hard lumps.
Geneglace orbital silos for the storage of flake ice. Ideal for:
- Seafood preservation
- Industrial food processing
Options for orbital silos :
- Wheighing auger VPS
- Wheighing auger VP12
- Wheighing auger with coin box
- High ice level detector
- Ice level indicator
- Ice Compactor
- Pneumatic Ice Conveyor
- Containerised Ice Plant

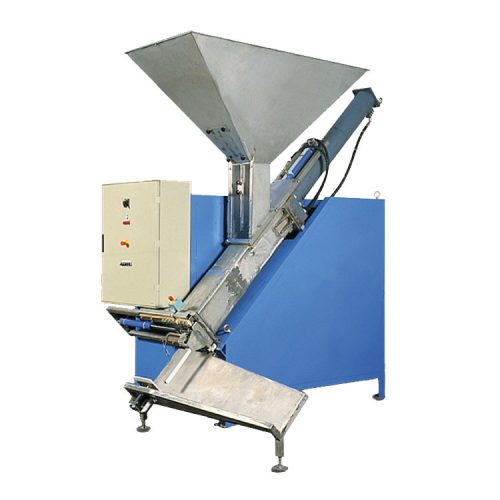

Ice Compactor
| Compacting capacity (t/24h) |
Stroke (blocks/h) |
Block weight (kg) |
|---|---|---|
| 30 | 60 | 2,5 | 5,0 | 10,0 | 25,0 |
Throughput and block weight according to your requirements
Combined with an ice-maker, the compactor transforms the flakes into blocks. 40 to 50 blocks of 25 kg each are pressed every hour automatically. Requiring little space, it enables the operator to either supply ice in flakes or blocks.
Geneglace ice compactor for the transfomation of flake ice into blocks.
Ideal for:
- Seafood preservation
- Industrial food processing

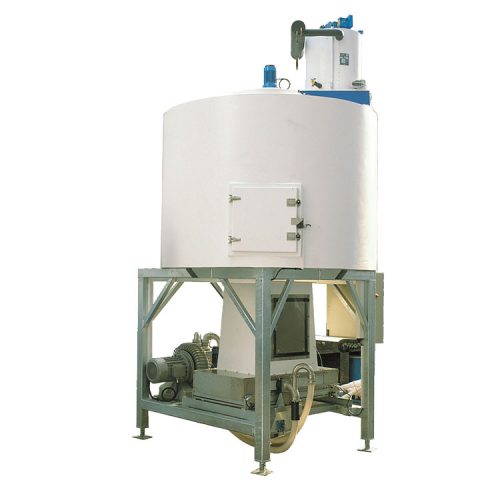

Pneumatic Ice Conveyor
| Speed (kg/mn) |
Hopper capacity (l) |
Travelling distance (m) * |
Maximum elevation (m) |
|---|---|---|---|
| 25 to 30 | 300 | up to 80 | up to 4 |
| 80 to 150 | – | up to 80 | up to 4 |
Flake ice can be transported using screw conveyors, gravity feed or pneumatic systems.
Geneglace pneumatic ice conveyor for the transportation of flake ice in storage systems. Ideal for:
- Seafood preservation
- Industrial food processing

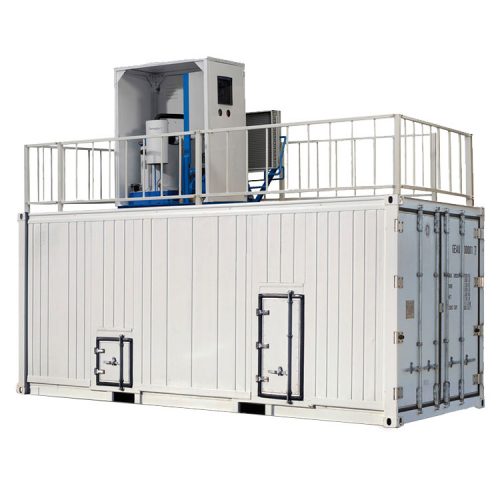

Containerized Ice Plant – Complete Ice Systems
| Model | Production (kg/24h) Ice Machines |
Storage (t) according to ice density |
|---|---|---|
| 5 tons | 5.000 Pack 31 |
20 Container 20′ |
| 10 tons | 10.000 2 x Pack 31 |
20 Container 20′ |
| 12 tons | 12.500 Pack 36 |
20 Container 20′ |
| 24 tons | 24.000 2 x Pack 36 |
40 Container 40′ |
Medium and large capacity containerised ice plants. Easy to transport and to install on site. Sheltered form the wind and rain. Simple heavy-duty and economical. Refrigeration is available as an option.
Geneglace containerised ice plants for the production of flake ice.
Ideal for any kind of industrial process.
