Southern Sales & Services supplies Frascold’s Standard Reciprocating Series compressors to deliver the perfect solution every time.
Their standard reciprocating compressor series stands out for a high degree of versatility, whisper-quiet operation, and smaller dimensions to fit inside tight spaces.
Features:
- COMPACT DESIGN
- SAFE OPERATION
- VFD COMPATIBLE MODELS
- SILENT
- RSH HEAD CAPACITY CONTROL
If you need help selecting the correct products for your application please get in touch.
Frascold Standard Reciprocating SERIES

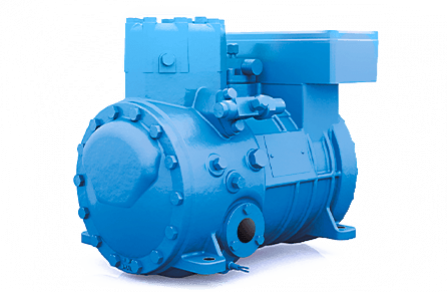

The Frascold standard semi-hermetic reciprocating compressors are designed to guarantee high efficiency, supreme reliability, and excellent performance all in one package.
This series has a full 81 different models to fit the widest range of applications. They are well suited to operate with inverters, while the D, Q, S, V, Z, and W models are engineered to work in tandem with our revolutionary Frascold capacity control RSH head.
Suitable for:
- FROZEN FOOD OUTLETS
- ICE MACHINES
- BEVERAGES
- FOODSTUFFS
- ICE CREAM SHOPS
- Size A
- Size B
- Size D
- Size Q
- Size S
- Size V
- Size W
- Size Z

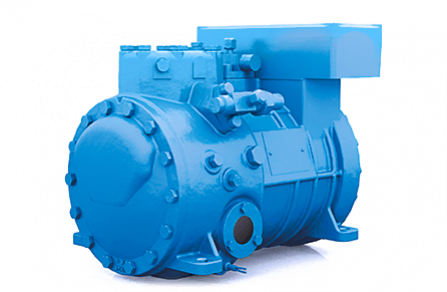

A05-4Y
Volumetric displacement 4 m³/h
Motor power 0,4 kW
Pistons 2
Cap. reg. 100
A05-5Y
Volumetric displacement 4,9 m³/h
Motor power 0,4 kW
Pistons 2
Cap. reg. 100
A07-5Y
Volumetric displacement 4,9 m³/h
Motor power 0,5 kW
Pistons 2
Cap. reg. 100
A07-6Y
Volumetric displacement 5,5 m³/h
Motor power 0,5 kW
Pistons 2
Cap. reg. 100
A1-6Y
Volumetric displacement 5,5 m³/h
Motor power 0,7 kW
Pistons 2
Cap. reg. 100
A1-7Y
Volumetric displacement 6,9 m³/h
Motor power 0,7 kW
Pistons 2
Cap. reg. 100
A1.5-7Y
Volumetric displacement 6,9 m³/h
Motor power 1,1 kW
Pistons 2
Cap. reg. 100
A1.5-8Y
Volumetric displacement 7,7 m³/h
Motor power 1,1 kW
Pistons 2
Cap. reg. 100
B1.5-9.1Y
Volumetric displacement 9 m³/h
Motor power 1,1 kW
Pistons 2
Cap. reg. 100
B1.5-10.1Y
Volumetric displacement 9,9 m³/h
Motor power 1,1 kW
Pistons 2
Cap. reg. 100
B2-10.1Y
Volumetric displacement 9,9 m³/h
Motor power 1,5 kW
Pistons 2
Cap. reg. 100

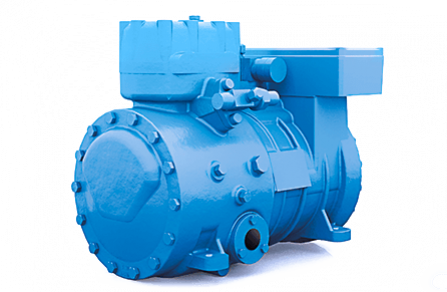

D2-11.1Y
Volumetric displacement 11,3 m³/h
Motor power 1,5 kW
Pistons 2
Cap. reg. 100-50
D2-13.1Y
Volumetric displacement 13,2 m³/h
Motor power 1,5 kW
Pistons 2
Cap. reg. 100-50
D3-13.1Y
Volumetric displacement 13,2 m³/h
Motor power 2,2 kW
Pistons 2
Cap. reg. 100-50
D2-15.1Y
Volumetric displacement 15,4 m³/h
Motor power 1,5 kW
Pistons 2
Cap. reg. 100-50
D3-15.1Y
Volumetric displacement 15,4 m³/h
Motor power 2,2 kW
Pistons 2
Cap. reg. 100-50
D3-16.1Y
Volumetric displacement 16,4 m³/h
Motor power 2,2 kW
Pistons 2
Cap. reg. 100-50
D4-16.1Y
Volumetric displacement 16,4 m³/h
Motor power 3 kW
Pistons 2
Cap. reg. 100-50
D3-18.1Y
Volumetric displacement 17,9 m³/h
Motor power 2,2 kW
Pistons 2
Cap. reg. 100-50
D4-18.1Y
Volumetric displacement 17,9 m³/h
Motor power 3 kW
Pistons 2
Cap. reg. 100-50
D3-19.1Y
Volumetric displacement 19,1 m³/h
Motor power 2,2 kW
Pistons 2
Cap. reg. 100-50
D4-19.1Y
Volumetric displacement 19,1 m³/h
Motor power 3 kW
Pistons 2
Cap. reg. 100-50

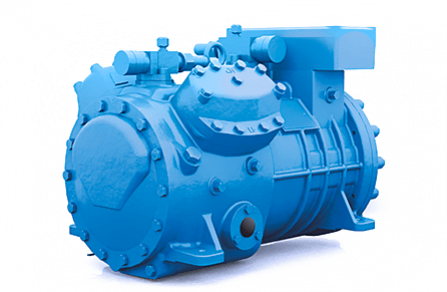

Q4-20.1Y
Volumetric displacement 19,8 m³/h
Motor power 3 kW
Pistons 4
Cap. reg. 100-75-50
Q4-21.1Y
Volumetric displacement 21,2 m³/h
Motor power 3 kW
Pistons 4
Cap. reg. 100-75-50
Q5-21.1Y
Volumetric displacement 21,2 m³/h
Motor power 3,7 kW
Pistons 4
Cap. reg. 100-75-50
Q4-24.1Y
Volumetric displacement 23,9 m³/h
Motor power 3 kW
Pistons 4
Cap. reg. 100-75-50
Q5-24.1Y
Volumetric displacement 23,9 m³/h
Motor power 3,7 kW
Pistons 4
Cap. reg. 100-75-50
Q4-25.1Y
Volumetric displacement 24,7 m³/h
Motor power 3 kW
Pistons 4
Cap. reg. 100-75-50
Q5-25.1Y
Volumetric displacement 24,7 m³/h
Motor power 3,7 kW
Pistons 4
Cap. reg. 100-75-50
Q7-25.1Y
Volumetric displacement 24,7 m³/h
Motor power 5,2 kW
Pistons 4
Cap. reg. 100-75-50
Q5-28.1Y
Volumetric displacement 28 m³/h
Motor power 3,7 kW
Pistons 4
Cap. reg. 100-75-50
Q7-28.1Y
Volumetric displacement 28 m³/h
Motor power 5,2 kW
Pistons 4
Cap. reg. 100-75-50
Q5-33.1Y
Volumetric displacement 32,7 m³/h
Motor power 3,7 kW
Pistons 4
Cap. reg. 100-75-50
Q7-33.1Y
Volumetric displacement 32,7 m³/h
Motor power 5,2 kW
Pistons 4
Cap. reg. 100-75-50
Q7-36.1Y
Volumetric displacement 35,9 m³/h
Motor power 5,2 kW
Pistons 4
Cap. reg. 100-75-50

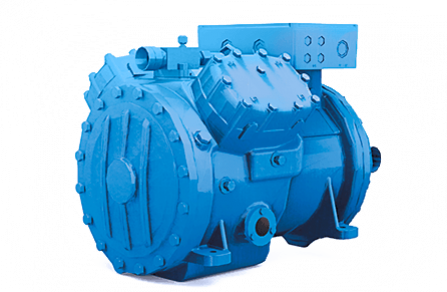

S5-33Y
Volumetric displacement 32,8 m³/h
Motor power 3,7 kW
Pistons 4
Cap. reg. 100-75-50
S7-33Y
Volumetric displacement 32,8 m³/h
Motor power 5,2 kW
Pistons 4
Cap. reg. 100-75-50
S8-42Y
Volumetric displacement 41,3 m³/h
Motor power 6 kW
Pistons 4
Cap. reg. 100-75-50
S12-42Y
Volumetric displacement 41,3 m³/h
Motor power 8,9 kW
Pistons 4
Cap. reg. 100-75-50
S10-52Y
Volumetric displacement 51,5 m³/h
Motor power 7,5 kW
Pistons 4
Cap. reg. 100-75-50
S15-52Y
Volumetric displacement 51,5 m³/h
Motor power 11,2 kW
Pistons 4
Cap. reg. 100-75-50
S15-56Y
Volumetric displacement 56 m³/h
Motor power 11,2 kW
Pistons 4
Cap. reg. 100-75-50
S20-56Y
Volumetric displacement 56 m³/h
Motor power 14,9 kW
Pistons 4
Cap. reg. 100-75-50
S20-63Y
Volumetric displacement 63,2 m³/h
Motor power 14,9 kW
Pistons 4
Cap. reg. 100-75-50
S25-63Y
Volumetric displacement 63,2 m³/h
Motor power 18,6 kW
Pistons 4
Cap. reg. 100-75-50

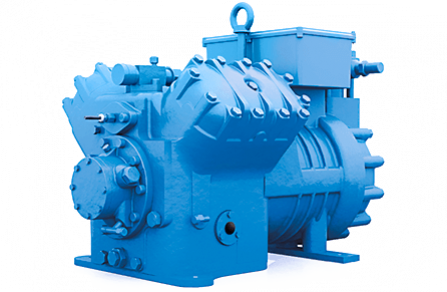

V15-59Y
Volumetric displacement 58,5 m³/h
Motor power 11,2 kW
Pistons 4
Cap. reg. 100-75-50
V20-59Y
Volumetric displacement 58,5 m³/h
Motor power 14,9 kW
Pistons 4
Cap. reg. 100-75-50
V15-71Y
Volumetric displacement 70,8 m³/h
Motor power 11,2 kW
Pistons 4
Cap. reg. 100-75-50
V25-71Y
Volumetric displacement 70,8 m³/h
Motor power 18,6 kW
Pistons 4
Cap. reg. 100-75-50
V20-84Y
Volumetric displacement 83,8 m³/h
Motor power 14,9 kW
Pistons 4
Cap. reg. 100-75-50
V30-84Y
Volumetric displacement 83,8 m³/h
Motor power 22,4 kW
Pistons 4
Cap. reg. 100-75-50
V25-93Y
Volumetric displacement 93,1 m³/h
Motor power 18,6 kW
Pistons 4
Cap. reg. 100-75-50
V32-93Y
Volumetric displacement 93,1 m³/h
Motor power 23,9 kW
Pistons 4
Cap. reg. 100-75-50
V25-103Y
Volumetric displacement 102,9 m³/h
Motor power 18,6 kW
Pistons 4
Cap. reg. 100-75-50
V35-103Y
Volumetric displacement 102,9 m³/h
Motor power 26,1 kW
Pistons 4
Cap. reg. 100-75-50
V30-112Y
Volumetric displacement 112,11 m³/h
Motor power 22,4 kW
Pistons 4
Cap. reg. 100-75-50
V35-112Y
Volumetric displacement 112,11 m³/h
Motor power 26,1 kW
Pistons 4
Cap. reg. 100-75-50
V30-123Y
Volumetric displacement 123,13 m³/h
Motor power 22,4 kW
Pistons 4
Cap. reg. 100-75-50
V40-123Y
Volumetric displacement 123,13 m³/h
Motor power 29,8 kW
Pistons 4
Cap. reg. 100-75-50

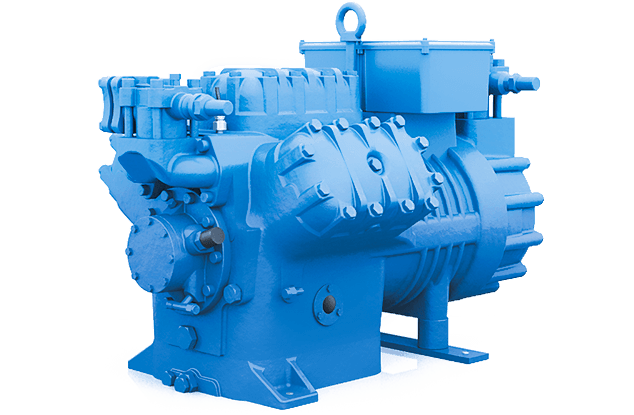

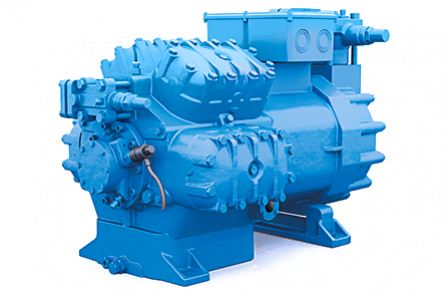

W40-142Y
Volumetric displacement 141,5 m³/h
Motor power 29,8 kW
Pistons 8
Cap. reg. 100-87,5-75-62,5-50
W40-168Y
Volumetric displacement 167,6 m³/h
Motor power 29,8 kW
Pistons 8
Cap. reg. 100-87,5-75-62,5-50
W50-168Y
Volumetric displacement 167,6 m³/h
Motor power 37,3 kW
Pistons 8
Cap. reg. 100-87,5-75-62,5-50
W50-168Y
Volumetric displacement 186,1 m³/h
Motor power 37,3 kW
Pistons 8
Cap. reg. 100-87,5-75-62,5-50
W60-168Y
Volumetric displacement 186,1 m³/h
Motor power 44,7 kW
Pistons 8
Cap. reg. 100-87,5-75-62,5-50
W60-206Y
Volumetric displacement 205,8 m³/h
Motor power 44,7 kW
Pistons 8
Cap. reg. 100-87,5-75-62,5-50
W70-206Y
Volumetric displacement 205,8 m³/h
Motor power 52,2 kW
Pistons 8
Cap. reg. 100-87,5-75-62,5-50
W70-228Y
Volumetric displacement 227,8 m³/h
Motor power 52,2 kW
Pistons 8
Cap. reg. 100-87,5-75-62,5-50
W75-228Y
Volumetric displacement 227,8 m³/h
Motor power 55,9 kW
Pistons 8
Cap. reg. 100-87,5-75-62,5-50
W75-240Y
Volumetric displacement 239 m³/h
Motor power 55,9 kW
Pistons 8
Cap. reg. 100-87,5-75-62,5-50
W75-240Y
Volumetric displacement 239 m³/h
Motor power 59,7 kW
Pistons 8
Cap. reg. 100-87,5-75-62,5-50

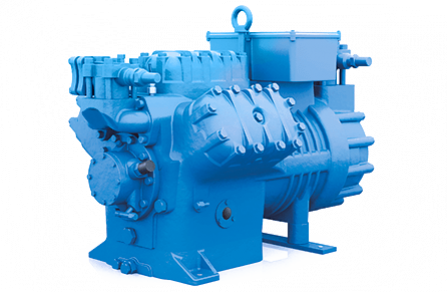

Z25-106Y
Volumetric displacement 106,2 m³/h
Motor power 18,6 kW
Pistons 6
Cap. reg. 100-83-67-50
Z35-106Y
Volumetric displacement 106,2 m³/h
Motor power 26,1 kW
Pistons 6
Cap. reg. 100-83-67-50
Z30-126Y
Volumetric displacement 127,7 m³/h
Motor power 22,4 kW
Pistons 6
Cap. reg. 100-83-67-50
Z40-126Y
Volumetric displacement 125,7 m³/h
Motor power 29,8 kW
Pistons 6
Cap. reg. 100-83-67-50
Z40-140Y
Volumetric displacement 139,7 m³/h
Motor power 29,8 kW
Pistons 6
Cap. reg. 100-83-67-50
Z50-140Y
Volumetric displacement 139,7 m³/h
Motor power 37,3 kW
Pistons 6
Cap. reg. 100-83-67-50
Z40-154Y
Volumetric displacement 154,4 m³/h
Motor power 29,8 kW
Pistons 6
Cap. reg. 100-83-67-50
Z50-154Y
Volumetric displacement 154,4 m³/h
Motor power 37,3 kW
Pistons 6
Cap. reg. 100-83-67-50
Z40-168Y
Volumetric displacement 162,2 m³/h
Motor power 29,8 kW
Pistons 6
Cap. reg. 100-83-67-50
Z50-168Y
Volumetric displacement 168,2 m³/h
Motor power 37,3 kW
Pistons 6
Cap. reg. 100-83-67-50
Z50-185Y
Volumetric displacement 184,7 m³/h
Motor power 37,3 kW
Pistons 6
Cap. reg. 100-83-67-50
